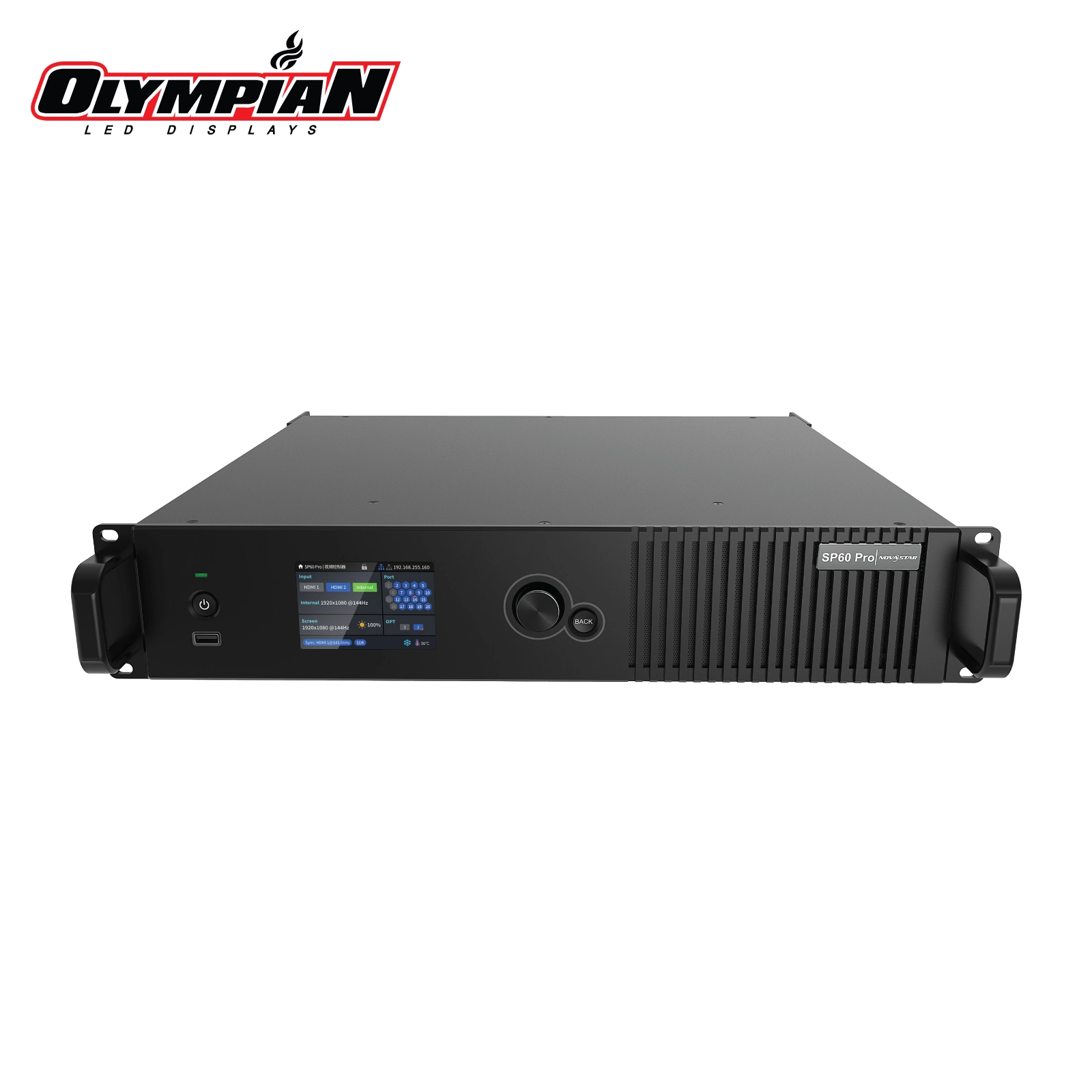

NovaStar SP60 Pro
The SP60 Pro is a specialized LED display controller created by NovaStar specifically for sub-pixel (virtual pixel) screens. Equipped with 20 Ethernet ports and 2x 10G optical ports, it combines video processing and control functions with advanced sub-pixel rendering technology. Featuring 2x HDMI 2.0 inputs (with loop output), the SP60 Pro can work seamlessly with VMP (Vision Management Platform) software for enhanced operation and control. With support for mainstream sub-pixel layouts (Delta1, Delta3, Delta4, RGGB) and dynamic sub-pixel rendering technology offering three modes (Standard, Video, Document), it maximizes display content without changing physical pixel density. The controller features Dynamic Booster for real-time frame analysis to improve contrast and reduce power consumption by 20-40%, Image Booster 2.0 for enhanced image quality, and Full-grayscale calibration with NovaStar's high-precision system. Supporting 2 independent layers with up to 8K×2K resolution per layer, HDR10/HLG, 3D display, and ultra-low latency (less than 1ms in Send-Only mode), the SP60 Pro delivers exceptional visual performance for professional sub-pixel LED applications. The controller supports up to 128 customizable presets and includes comprehensive device monitoring capabilities.
Key Highlights
Key Features
HDR
HDR10
HLG
3D
Sub-Pixel
10G Fiber
Low Latency
Dynamic Booster
Full-Grayscale Calibration
Preset
HDCP
SNMP Protocol
Art-Net Protocol
Cascading
Technical Specifications
Video Processing
| Layers | 2 layers |
| Maximum Pixels | 17.69 million sub-pixels |
| Maximum Width | 8192 pixels |
| Maximum Height | 7680 pixels |
Input Connectors
| HDMI | 2x HDMI 2.0 (with loop output, supports HDR10 and HLG, HDCP 2.2, max 4096×2160@60Hz or 8192×1080@60Hz, 10-bit and 8-bit) |
| AUDIO | 1x SPDIF (digital audio output) |
Input Resolution Capabilities
| Input Resolutions | HDMI 2.0: up to 4096×2160@60Hz or 8192×1080@60Hz (Forced); Frame rates: 23.98-240 Hz |
📊 Supported Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 4K — 4096×2160 (Forced) | ||||
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8/10bit | 24/25/30/48/50/60 | |
| 4K — 3840×2160 | ||||
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8/10bit | 24/25/30/48/50/60 | |
| 2K1K — 2560×1440 | ||||
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/75/100 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/75/100/120 | |
| YCbCr | 4:2:2 | 8/10bit | 24/25/30/48/50/60/75/100/120 | |
| 1K — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/72/75/100/120/144 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/75/100/120/144/240 | |
| YCbCr | 4:2:2 | 8/10bit | 24/25/30/48/50/60/72/75/100/120/144/240 | |
- Supports HDR10 and complies with SMPTE ST 2084 and SMPTE ST 2086 standards
- Supports HLG (Hybrid Log-Gamma)
- HDCP 2.2 compliant for HDMI inputs (backwards compatible with HDCP 1.4/1.3)
- 10-bit and 8-bit color depth support
- Frame rate adaptive 23.98-240 Hz with decimal frame rate support
- 2x HDMI 2.0 inputs with loop output
- Specifically designed for sub-pixel (virtual pixel) LED screens
- Must be used with A8s Pro, A10s Pro, MRV532, NV3210, BR624L, or NS6323A receiving cards

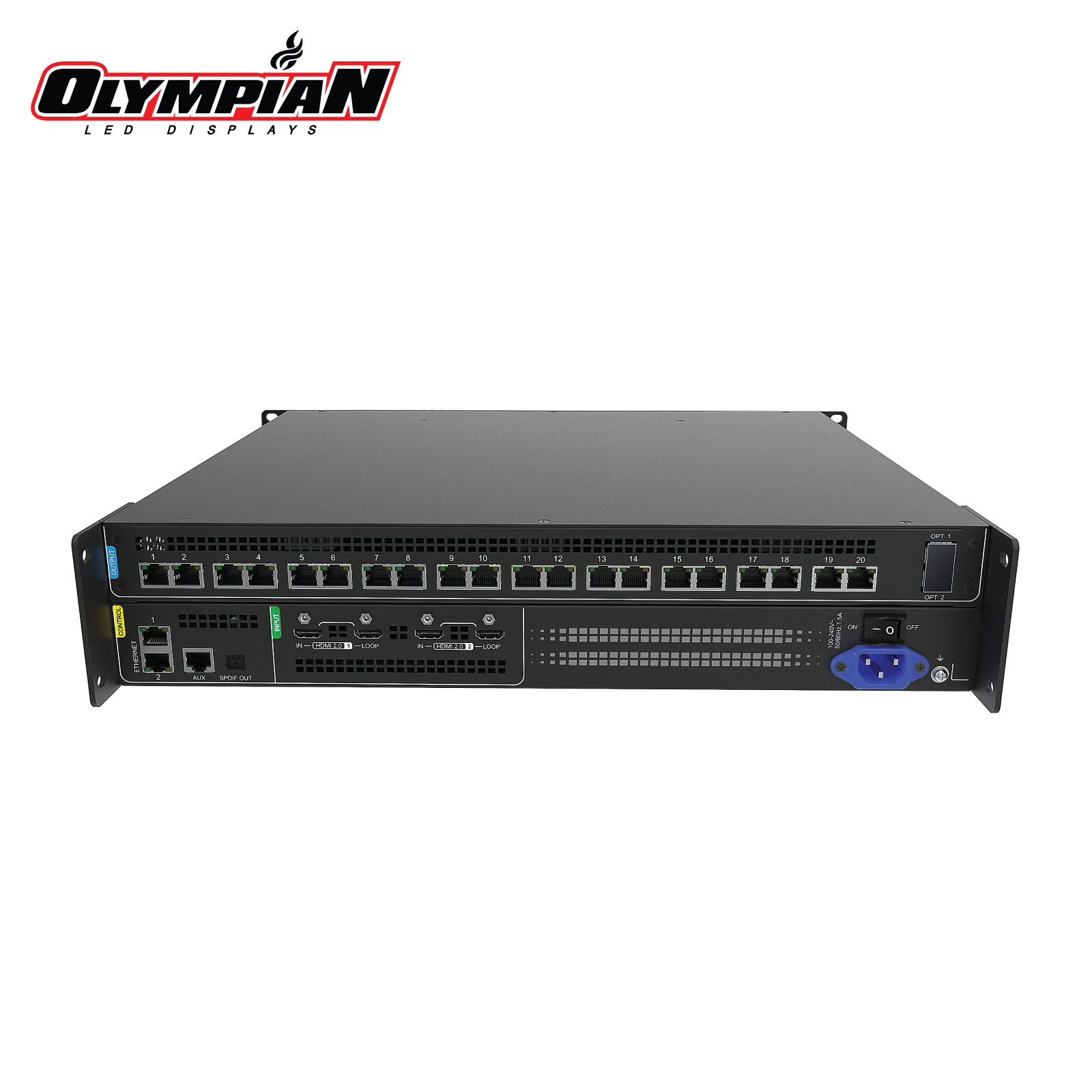

Output & Connectivity
| Ethernet Output | 20x Gigabit Ethernet |
| Fiber Output | 2x 10G Fiber |
Physical Specifications
| Power Input | 100-240V~, 50/60Hz, 1.5A (82W max) |
| Dimensions | 482.6 mm × 94.2 mm × 467.0 mm (19.0" × 3.7" × 18.4") |
| Net weight | 7.4 kg (16.3 lbs) |
| IP Rating | IP20 |
| Packing box | 660.0 mm × 570.0 mm × 210.0 mm (26.0" × 22.4" × 8.3") |
Features
Working Modes
| • All-In-One Controller |
| • Send-Only Controller |
Software
| COEX VMP 1.5.0 | ⬇️ Windows ⬇️ macOS |
| Compatible Software | VMP |
Why Choose the SP60 Pro?
✓ All-in-One Design
Integrated solution saves rack space and simplifies setup
✓ Professional Features
Advanced processing with low latency and pixel-level calibration
✓ Maximum Reliability
Backed by 3-year NovaStar warranty plus Olympian LED support
✓ Proven Performance
Trusted by production companies and rental houses nationwide
Frequently Asked Questions
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
