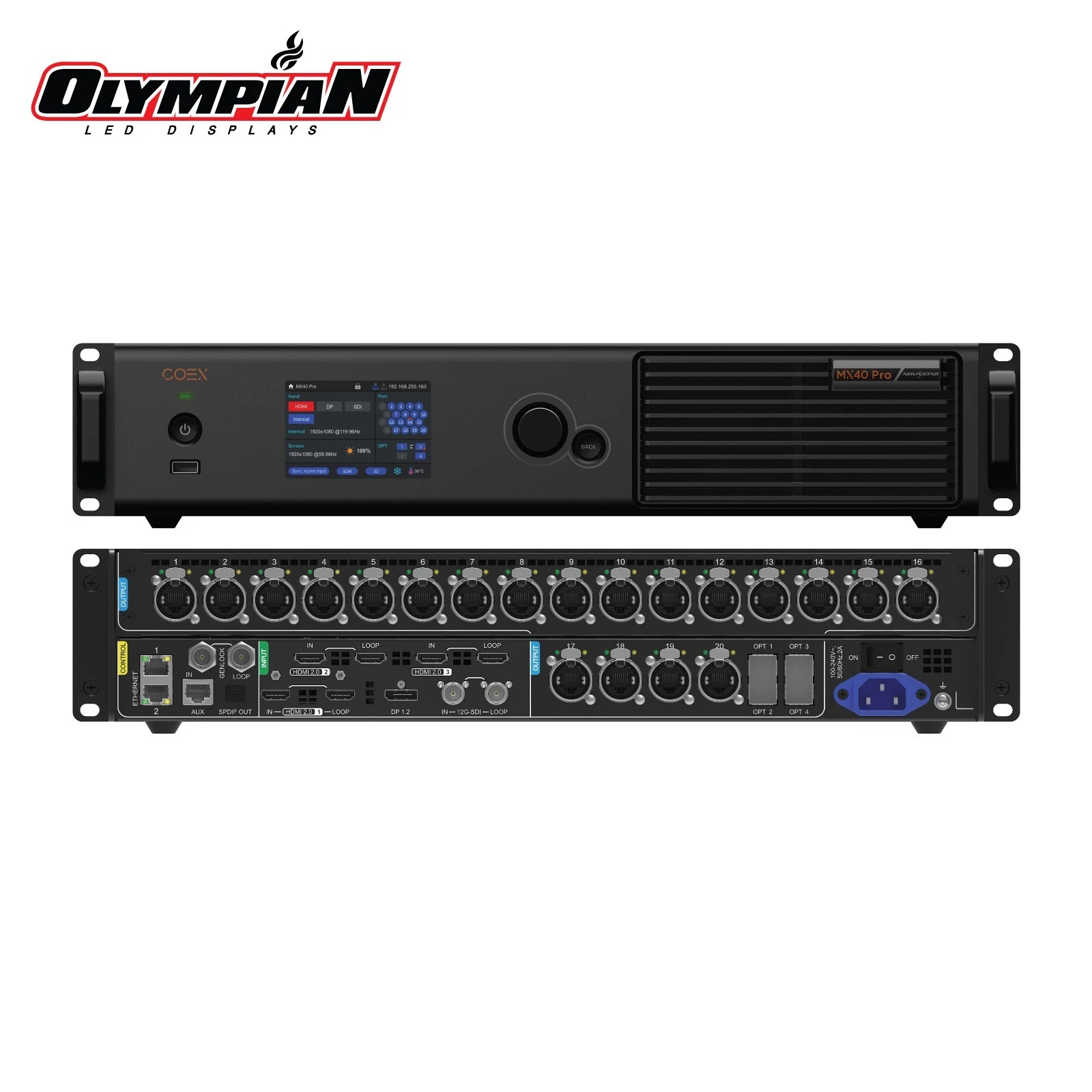

NovaStar MX40 Pro
The MX40 Pro, hailing from the advanced COEX series, is NovaStar's premier 4K LED display controller. Equipped with a plethora of video input options (3x HDMI 2.0, DP 1.2, and 12G-SDI) and designed to synchronize seamlessly with VMP (Vision Management Platform) software, the MX40 Pro promises a superior operational and control experience. Leveraging Image Booster 2.0 and Dynamic Booster, it achieves significant enhancements in grayscale (22bit+, 64-fold magnification, 0.002 nits precision), color accuracy (âģE<2), and contrast ratio. The Dynamic Booster analyzes brightness frame-by-frame, resulting in 20-40% power savings while prolonging LED display lifespan. With 9 million pixel capacity, 4 independent 4K layers, less than 1ms latency, and support for irregular screen shapes without rectangular restrictions, the MX40 Pro delivers unparalleled visual brilliance for professional LED display applications.
Key Highlights
Key Features
HDR
HDR10
HLG
3D
Genlock
4K
10G Fiber
Low Latency
12-bit
Frame Rate Adaptive
Color Replacement
14Ch Color Correction
Color Curves
3D LUT
Frame Multiplication
Shutter Fit
Preset
Full-Grayscale Calibration
Dynamic Booster
Grayscale Calibration
HDCP
SNMP Protocol
Art-Net Protocol
Central Control Protocol
Cascading
Technical Specifications
Video Processing
| Layers | 4 layers |
| Maximum Pixels | 9 million pixels |
| Maximum Width | 8192 pixels |
| Maximum Height | 8192 pixels |
Input Connectors
| HDMI | 3x HDMI 2.0 (with loop through, supports HDR10 and HLG, HDCP 2.2, max 8192Ã1080@60Hz, 12-bit) |
| DISPLAYPORT | 1x DP 1.2 (max 4096Ã2160@60Hz, 12-bit) |
| SDI | 1x 12G-SDI (with loop through, max 4096Ã2160@60Hz, 12-bit) |
| GENLOCK | 1x Genlock (with loop through) |
| AUDIO | 1x SPDIF (digital audio output) |
Input Resolution Capabilities
| Input Resolutions | HDMI 2.0: up to 8192Ã1080@60Hz; DP 1.2: up to 4096Ã2160@60Hz; 12G-SDI: up to 4096Ã2160@60Hz; Frame rates: 23.98-480 Hz |
Output & Connectivity
| Ethernet Output | 20x Gigabit Ethernet |
| Fiber Output | 4x 10G Fiber |
Physical Specifications
| Dimensions | 482.6 mm à 94.2 mm à 467.0 mm (19.0" à 3.7" à 18.4") |
| Net weight | 7.5 kg (16.5 lbs) |
| IP Rating | IP20 |
| Packing box | 5950.0 mm à 575.0 mm à 215.0 mm (234.3" à 22.6" à 8.5") |
Features
Working Modes
| âĒ All-In-One Controller |
| âĒ Send-Only Controller |
Software
| Compatible Software | VMP |
Why Choose the MX40 Pro?
â All-in-One Design
Integrated solution saves rack space and simplifies setup
â Professional Features
Advanced processing with low latency and pixel-level calibration
â Maximum Reliability
Backed by 3-year NovaStar warranty plus Olympian LED support
â Proven Performance
Trusted by production companies and rental houses nationwide
Frequently Asked Questions
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
