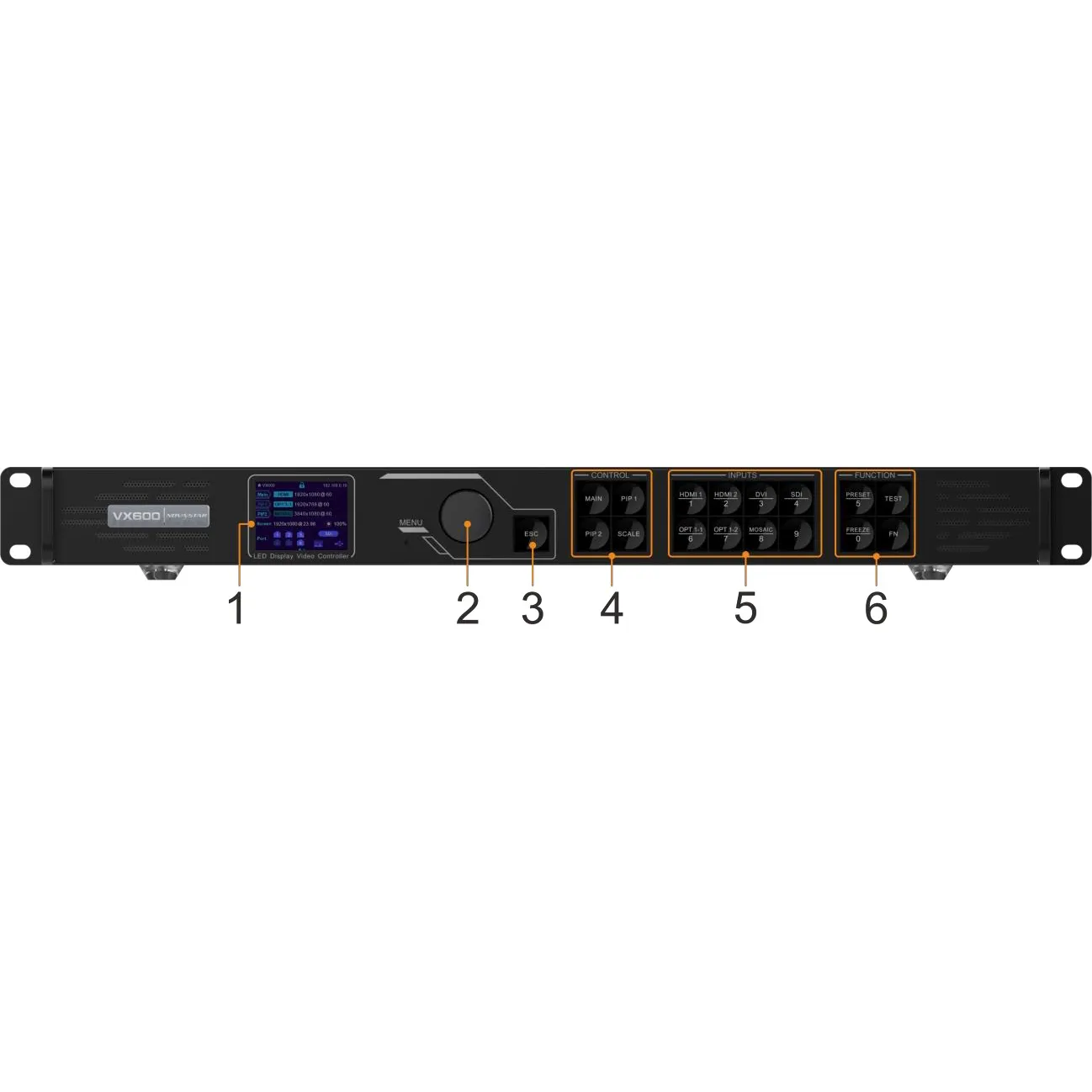

NovaStar VX600
The VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
Key Highlights
Key Features
Genlock
10G Fiber
Light Sensor
Low Latency
Color Calibration
Mosaic
Brightness and Chroma Calibration
Technical Specifications
Video Processing
| Layers | 3 layers |
| Maximum Pixels | 3.9 million pixels |
| Maximum Width | 10240 pixels |
| Maximum Height | 8192 pixels |
Input Connectors
| SDI | 1x 3G-SDI (IN & LOOP) |
| HDMI | 2x HDMI 1.3 |
| DVI | 1x DVI (IN & LOOP) |
Input Resolution Capabilities
| 3G-SDI | |
| Standard | 3G-SDI up to 1920×1080@60Hz |
| Notes | ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported. Deinterlacing processing supported. 3G-SDI loop through output supported. Does NOT support input resolution and bit depth settings. |
| HDMI 1.3 | |
| Standard | HDMI 1.3 up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 2784 |
| Notes | HDCP 1.4 compliant. Does NOT support interlaced signal inputs. Custom resolutions supported. Max width: 3840 (3840×648@60Hz). Max height: 2784 (800×2784@60Hz). Forced inputs supported: 600×3840@60Hz. Loop through output supported on HDMI 1.3-1. |
| DVI | |
| Standard | DVI up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 2784 |
| Notes | HDCP 1.4 compliant. Does NOT support interlaced signal inputs. Custom resolutions supported. Max width: 3840 (3840×648@60Hz). Max height: 2784 (800×2784@60Hz). Forced inputs supported: 600×3840@60Hz. Loop through output supported. |
Output & Connectivity
| Ethernet Output | 6x Gigabit Ethernet |
| Fiber Output | 2x Fiber |
| Monitoring | 1x HDMI 1.3 (monitoring) |
Physical Specifications
| Dimensions | 483.6 mm × 351.2 mm × 50.1 mm (19.0" × 13.8" × 2.0") |
| Net weight | 4.0 kg (8.8 lbs) |
Features
Working Modes
| • Video Controller |
| • Fiber Converter |
| • ByPass Mode |
Software
| Firmware V2.5.1 | ⬇️ Download |
| NovaLCT 5.8.0 | ⬇️ Windows |
| V-Can 3.8.0 | ⬇️ Windows ⬇️ macOS |
| Compatible Software | NovaLCT, V-Can |
Why Choose the VX600?
✓ Professional Grade
Built for high-end rental, staging, and permanent installations
✓ Advanced Processing
4K support with low latency and superior image quality
✓ Flexible Configuration
Multiple working modes adapt to any production requirement
✓ Full Support
3-year warranty backed by largest US distributor
Frequently Asked Questions
Q: What size LED wall can the VX600 drive?
The VX600 can drive 3.9 million pixels with 6 Ethernet outputs, suitable for medium to large-scale LED displays.
Q: Is the VX600 suitable for rental applications?
Absolutely. The VX600 is designed for professional rental, staging, and touring applications where reliability is critical.
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
