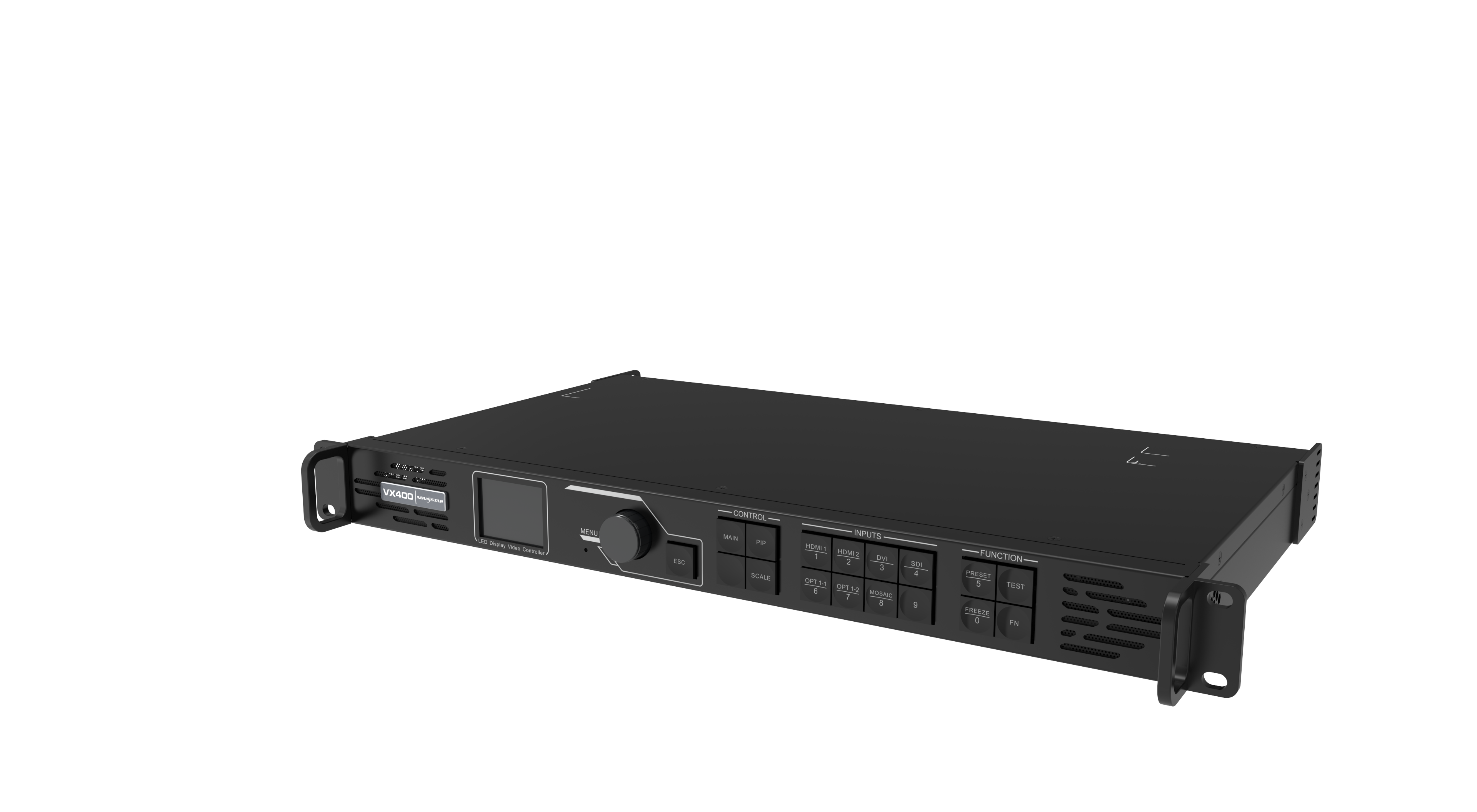

NovaStar VX400
The VX400 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX400 unit can drive up to 2.6 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
Ideal Applications
Perfect for a wide range of professional LED display scenarios
in-One Controller
Key Highlights
Key Features
Light Sensor
Low Latency
Color Calibration
Mosaic
Brightness and Chroma Calibration
10G Fiber
Technical Specifications
Video Processing
| Layers | 2 layers |
| Maximum Pixels | 2.6 million pixels |
| Maximum Width | 10240 pixels |
| Maximum Height | 8192 pixels |
Input Connectors
| SDI | 1x 3G-SDI (IN & LOOP) |
| HDMI | 2x HDMI 1.3 |
| DVI | 1x DVI (IN & LOOP) |
| FIBER | 1x 10G Fiber (OPT 1) |
Input Resolution Capabilities
| 3G-SDI | |
| Standard | 3G-SDI up to 1920×1080@60Hz |
| Notes | ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported. Deinterlacing processing supported. 3G-SDI loop output supported. Does NOT support input resolution and bit depth settings. |
| HDMI 1.3 | |
| Standard | HDMI 1.3 up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 2784 |
| Notes | HDCP 1.4 compliant. Does NOT support interlaced signal inputs. Custom resolutions supported. Max width: 3840 (3840×648@60Hz). Max height: 2784 (800×2784@60Hz). Forced inputs supported: 600×3840@60Hz. Loop output supported on HDMI 1.3-1. |
| DVI | |
| Standard | DVI up to 1920×1200@60Hz |
| Max. width | 3840 |
| Max. height | 2784 |
| Notes | HDCP 1.4 compliant. Does NOT support interlaced signal inputs. Custom resolutions supported. Max width: 3840 (3840×648@60Hz). Max height: 2784 (800×2784@60Hz). Forced inputs supported: 600×3840@60Hz. Loop output supported on DVI. |
Output & Connectivity
| Ethernet Output | 4x Gigabit Ethernet |
| Fiber Output | 2x Fiber |
| Monitoring | 1x HDMI 1.3 (monitoring) |
Physical Specifications
| Dimensions | 483.6 mm × 301.2 mm × 50.1 mm (19.0" × 11.9" × 2.0") |
| Net weight | 4.0 kg (8.8 lbs) |
Features
Working Modes
| • Video Controller |
| • Fiber Converter |
| • ByPass Mode |
Software
| Firmware V1.7.1 | ⬇️ Download |
| NovaLCT 5.8.0 | ⬇️ Windows |
| V-Can 3.8.0 | ⬇️ Windows ⬇️ macOS |
| Compatible Software | NovaLCT, V-Can |
Why Choose the VX400?
✓ Professional Grade
Built for high-end rental, staging, and permanent installations
✓ Advanced Processing
4K support with low latency and superior image quality
✓ Flexible Configuration
Multiple working modes adapt to any production requirement
✓ Full Support
3-year warranty backed by largest US distributor
Frequently Asked Questions
Q: What size LED wall can the VX400 drive?
The VX400 can drive 2.6 million pixels with 4 Ethernet outputs, suitable for medium to large-scale LED displays.
Q: Is the VX400 suitable for rental applications?
Absolutely. The VX400 is designed for professional rental, staging, and touring applications where reliability is critical.
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Why Buy from Olympian LED?
Largest US Distributor
Best pricing guaranteed as the largest NovaStar distributor in America
Ships Same Day
Over $2M in stock at our Florida warehouse for immediate delivery
Flexible Terms
NET 30 payment terms and volume discounts for qualified businesses
Expert Support
Technical support from our team of LED display specialists
Ready to Get Started?
For pricing, availability, or technical questions about the VX400, contact Olympian LED today.
