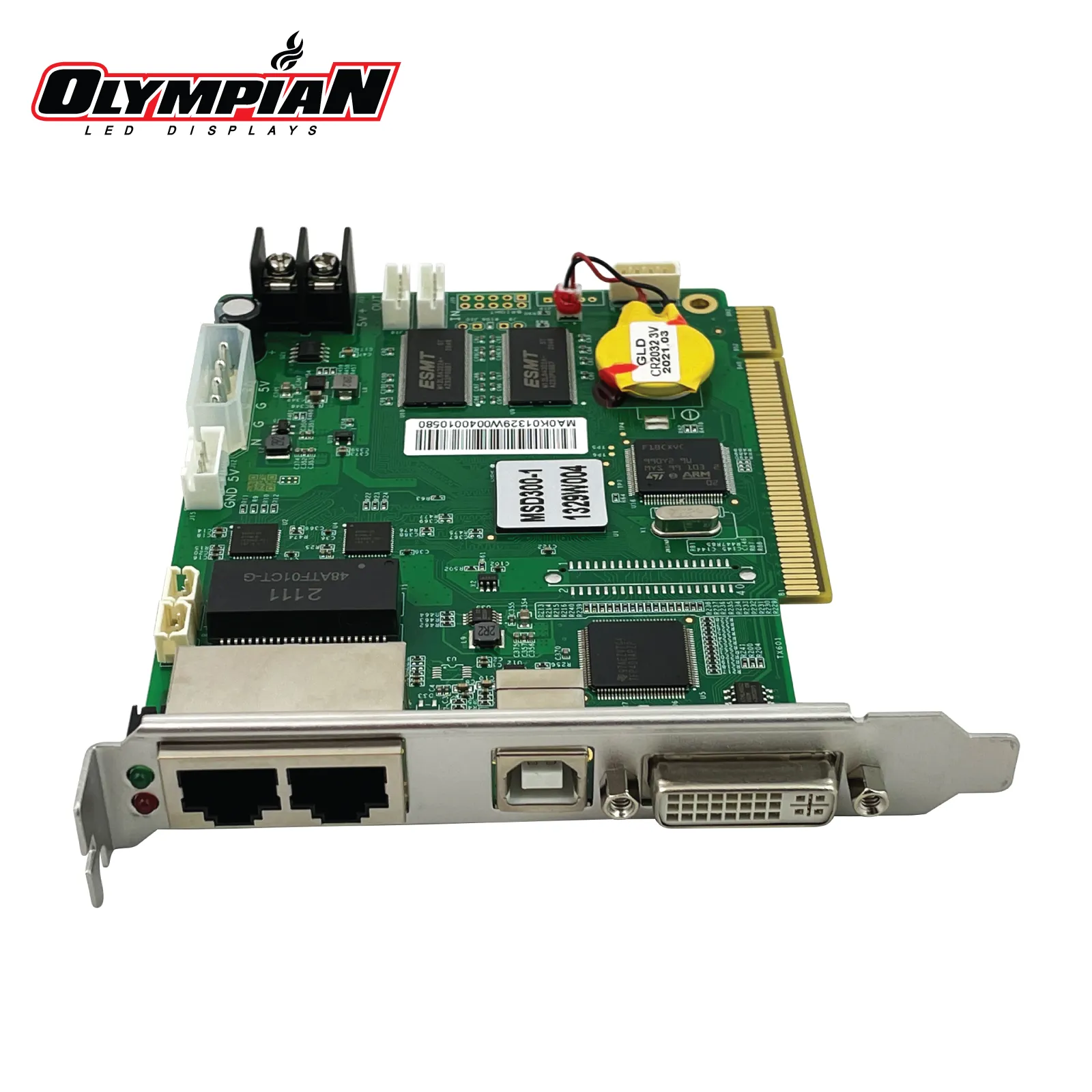

NovaStar MSD300-1
The MSD300-1 is the streamlined version of NovaStar's entry-level sending card, optimized for pure video applications. With 1.3 million pixel loading capacity and 2 Gigabit Ethernet outputs, it's ideal for video walls where audio isn't needed - such as retail displays, digital menu boards, wayfinding systems, and security monitoring walls. The card supports single-link DVI input up to 1920×1200@60Hz and features pixel-level brightness and chroma calibration for superior image quality. Includes light sensor support for automatic brightness adjustment based on ambient light. Multiple units can be cascaded for larger installations, and it's fully compatible with all NovaStar receiving cards. A cost-effective choice when audio pass-through isn't required.
Key Highlights
Key Features
Light Sensor
Color Calibration
Pixel-Level Brightness and Chroma Calibration
Technical Specifications
Video Processing
| Maximum Pixels | 1.3 million pixels |
Input Connectors
| DVI | 1x SL-DVI |
Input Resolution Capabilities
| SL-DVI | |
| Standard | Single-link DVI 8bit RGB 4:4:4 1920×1200@60Hz |
| Max. width | 1920 |
| Max. height | 1200 |
Output & Connectivity
| Ethernet Output | 2x Gigabit Ethernet |
Physical Specifications
| Dimensions | 138.8 mm × 120.6 mm × 22.0 mm (5.5" × 4.7" × 0.9") |
| Net weight | 104.3 g |
| Packing box | 400 mm × 365 mm × 355 mm (15.7" × 14.4" × 14.0") |
Features
Software
| NovaLCT 5.8.0 | ⬇️ Windows |
| Compatible Software | NovaLCT |
Why Choose the MSD300-1?
✓ All-in-One Design
Integrated solution saves rack space and simplifies setup
✓ Professional Features
Advanced processing with low latency and pixel-level calibration
✓ Maximum Reliability
Backed by 3-year NovaStar warranty plus Olympian LED support
✓ Proven Performance
Trusted by production companies and rental houses nationwide
Frequently Asked Questions
Q: What size LED wall can the MSD300-1 drive?
The MSD300-1 can drive 1.3 million pixels with 2 Ethernet outputs, suitable for medium to large-scale LED displays.
Q: Is the MSD300-1 suitable for rental applications?
Absolutely. The MSD300-1 is designed for professional rental, staging, and touring applications where reliability is critical.
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
