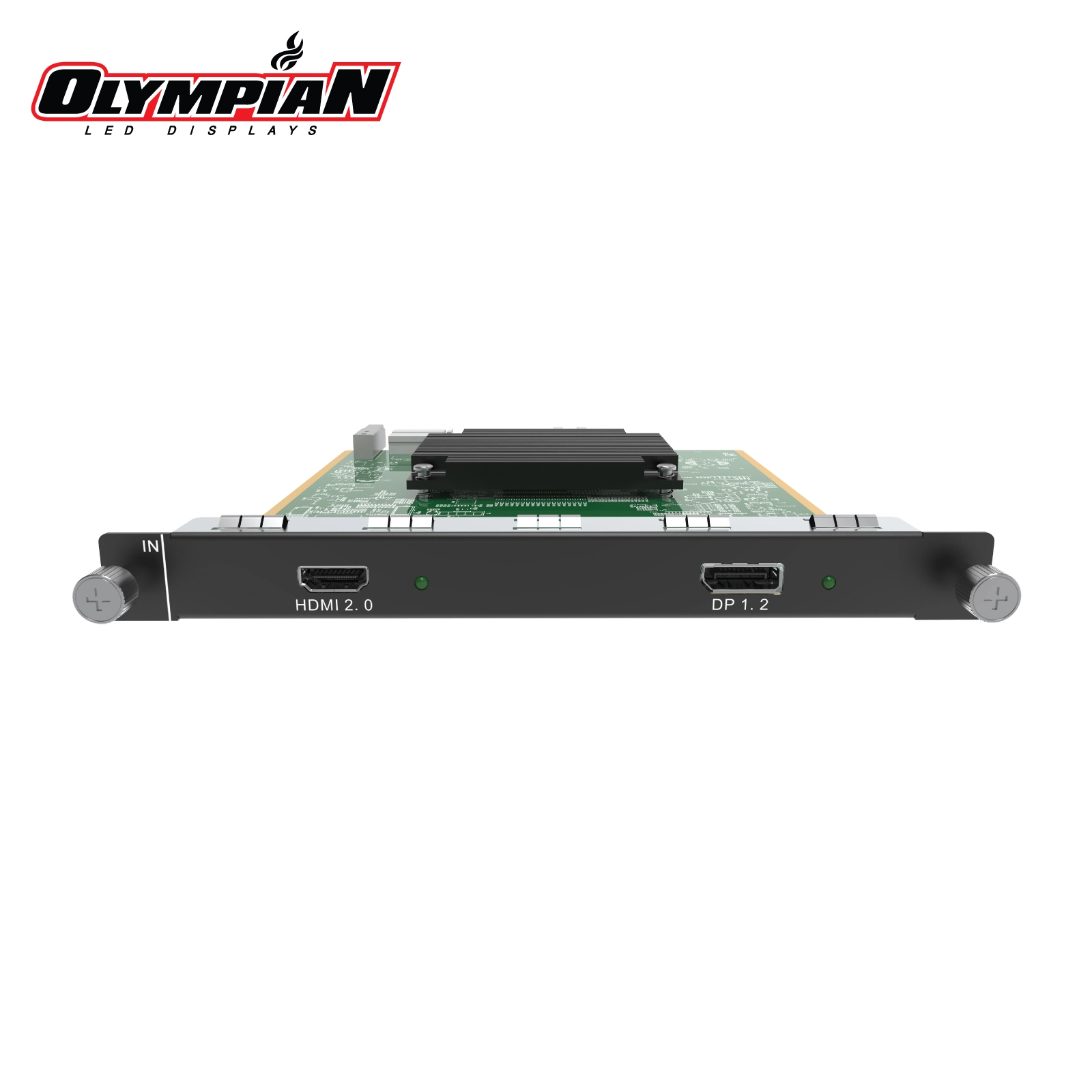

NovaStar H_1xHDMI2.0+1xDP1.2 Input Card
H Series 1x HDMI 2.0 + 1x DisplayPort 1.2 card. Compatible with H2, H5, H9, H15, H20 video wall processors.
Technical Specifications
📊 HDMI 2.0 Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| — 4096×2160@60Hz / 8192×1080@60Hz | ||||
| RGB / YCbCr | 4:4:4 | 8bit | 60 | |
| YCbCr | 4:2:2 | 8bit | 60 | |
| — 4096×2160@30Hz / 4096×1080@60Hz | ||||
| RGB / YCbCr | 4:4:4 | 10bit | 30/60 | |
| — 4096×2160@60Hz | ||||
| YCbCr | 4:2:2 | 10bit | 60 | |
📊 DP 1.2 Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| — 4096×2160@60Hz / 8192×1080@60Hz | ||||
| RGB / YCbCr | 4:4:4 | 8bit | 60 | |
| YCbCr | 4:2:2 | 8bit | 60 | |
| — 4096×2160@30Hz / 4096×1080@60Hz | ||||
| RGB / YCbCr | 4:4:4 | 10bit | 30/60 | |
| — 4096×2160@60Hz | ||||
| YCbCr | 4:2:2 | 10bit | 60 | |
- Only one connector can be used at a time
- Set connector on Web page (default: HDMI 2.0)
- Supports accompanied audio and 144Hz input
- Does not support interlaced signal input
Why Choose the H_1xHDMI2.0+1xDP1.2 Input Card?
✓ All-in-One Design
Integrated solution saves rack space and simplifies setup
✓ Professional Features
Advanced processing with low latency and pixel-level calibration
✓ Maximum Reliability
Backed by 3-year NovaStar warranty plus Olympian LED support
✓ Proven Performance
Trusted by production companies and rental houses nationwide
Frequently Asked Questions
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Why Buy from Olympian LED?
Largest US Distributor
Best pricing guaranteed as the largest NovaStar distributor in America
Ships Same Day
Over $2M in stock at our Florida warehouse for immediate delivery
Flexible Terms
NET 30 payment terms and volume discounts for qualified businesses
Expert Support
Technical support from our team of LED display specialists
Ready to Get Started?
For pricing, availability, or technical questions about the H_1xHDMI2.0+1xDP1.2 Input Card, contact Olympian LED today.
