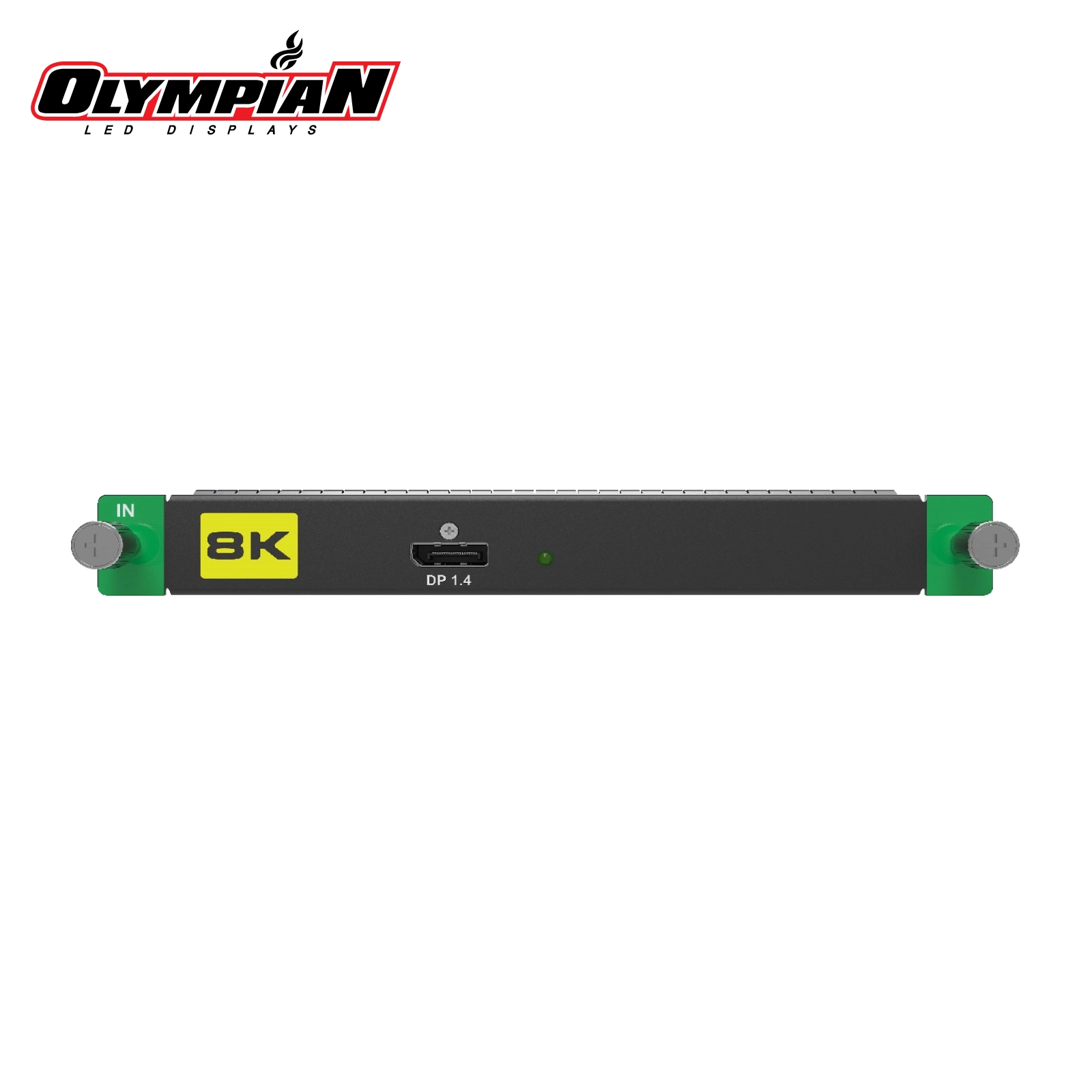

NovaStar MX_1×DP 1.4 (8K@60Hz) Input Card
MX Series 1x DisplayPort 1.4 input card supporting up to 8K@60Hz (7680×4320@60Hz). Features HDR10, HLG support, HDCP 2.3 compliance, and custom EDID management. Compatible with MX2000 Pro and MX6000 Pro controllers.
Technical Specifications
📊 Supported Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 8K — 7680×4320 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25/30/48/50/60 | |
| 5K — 5120×2880 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/75/100/120 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25/30/48/50/60/75/100/120 | |
| 4K — 4096×2160 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144 | |
| 4K — 3840×2160 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| 2K1K — 2560×1440 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| 1K — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
- Supports HDR10 and complies with SMPTE ST 2084 and SMPTE ST 2086 standards
- Supports HLG (Hybrid Log-Gamma)
- HDCP 2.3 compliant, backwards compatible with HDCP 2.2/HDCP 1.4/HDCP 1.3
- Supports preset resolutions up to 7680×4320@60Hz
- Supports custom input resolutions
- Does not support interlaced signal inputs
- Recommend using UGREEN DP 8K 1.5m cable (cables up to 3 meters supported)
- The table above only displays a selection of common resolutions and integer frame rates. Decimal frame rates are also supported, allowing for automatic frame rate adaptation from the highest frame rate of each resolution down to 23.98/29.97/47.95/59.94/71.93/119.88/143.86 Hz
- When using YCbCr 4:2:0 input, all frame rates need to be forced. Standard graphics cards only support a 4K resolution at 50/60 Hz. Other resolutions and frame rates require a source device that supports this color space and sampling to be forced.
Why Choose the MX_1×DP 1.4 (8K@60Hz) Input Card?
✓ All-in-One Design
Integrated solution saves rack space and simplifies setup
✓ Professional Features
Advanced processing with low latency and pixel-level calibration
✓ Maximum Reliability
Backed by 3-year NovaStar warranty plus Olympian LED support
✓ Proven Performance
Trusted by production companies and rental houses nationwide
Frequently Asked Questions
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Why Buy from Olympian LED?
Largest US Distributor
Best pricing guaranteed as the largest NovaStar distributor in America
Ships Same Day
Over $2M in stock at our Florida warehouse for immediate delivery
Flexible Terms
NET 30 payment terms and volume discounts for qualified businesses
Expert Support
Technical support from our team of LED display specialists
Ready to Get Started?
For pricing, availability, or technical questions about the MX_1×DP 1.4 (8K@60Hz) Input Card, contact Olympian LED today.
