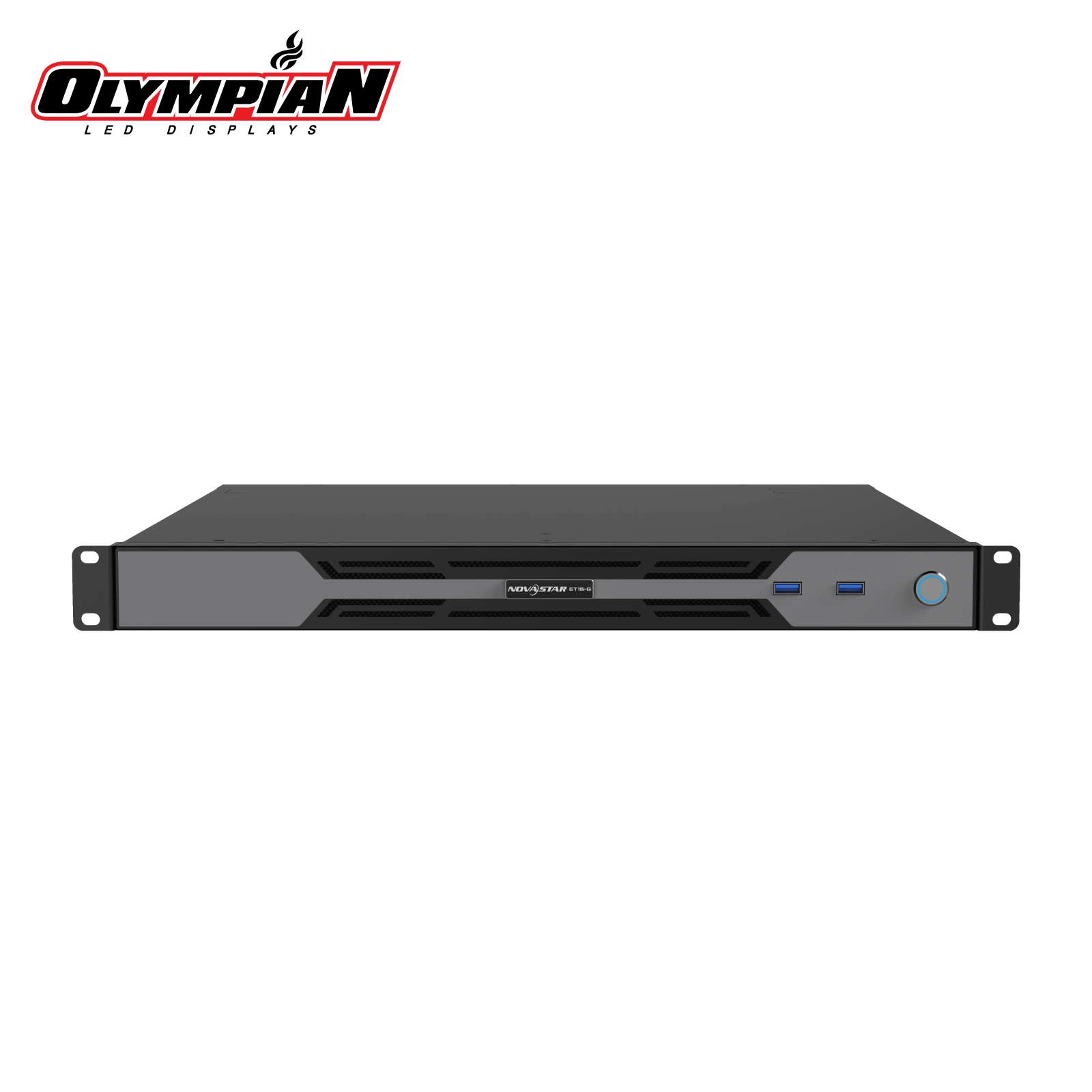

NovaStar ET1S-500G
The ET1S-G is a new media server designed by NovaStar for small-scale LED or LCD fixed installation applications. It not only boasts high-quality, ultra-high-resolution pixel-to-pixel display capabilities but also offers diversified mosaic creativity and outstanding media arrangements for professional stage performances. Built-in with intuitive and user-friendly media playback and control software Kompass FX1, the ET1S-G simplifies stage display management and provides best-in-class human-machine interaction. It is ideally suited for exhibitions, showrooms, small-scale conference rooms, and a variety of creative display applications. A single output can be split into up to 1024 partitions, allowing for quick mapping settings and ultra-wide screen configuration.
Configuration Comparison
| Model | Configuration | Decoding Capacity | Price |
|---|---|---|---|
| ET1S-G | ET1S-G | 1 layer of 4K@60 or 4 layers of 2K@60 | $1,099 |
| ET1S-500G | ET1S-500G | 1 layer of 4K@60 or 4 layers of 2K@60 | $1,182 |
Key Highlights
Technical Specifications
Video Processing
| Layers | 4 layers |
| Maximum Width | 4096 pixels |
| Maximum Height | 2160 pixels |

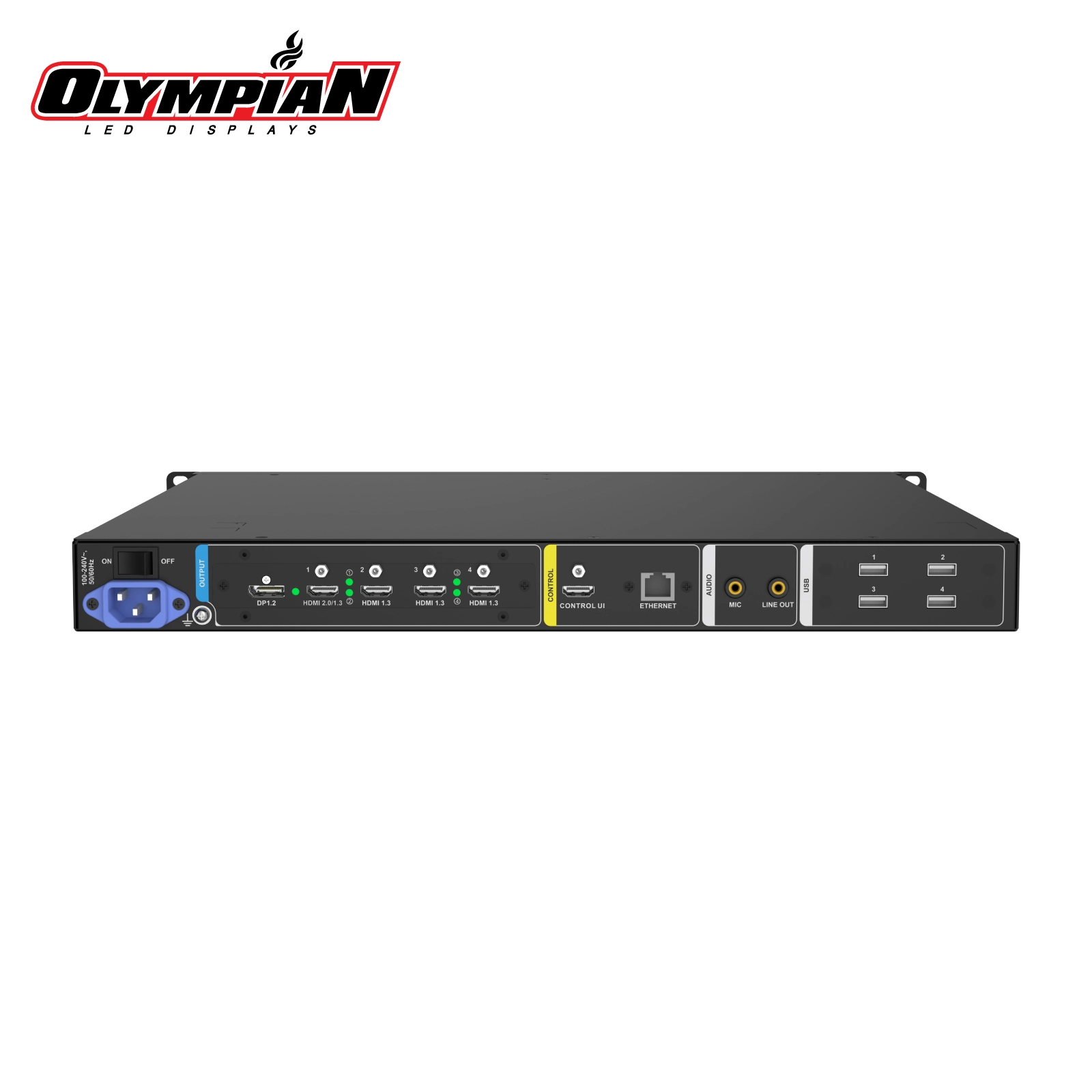

Input Connectors
| USB | 2x USB (front panel), 4x USB (rear panel) |
Input Resolution Capabilities
| Input Resolutions | DP 1.2 & HDMI 2.0: Max 4K×2K@60Hz, custom resolutions up to 7680×4095 pixels; HDMI 1.3 (4x): Max 2K×1K@60Hz, EDID 640-2048×480-1280 pixels; CONTROL UI: Max 2K×1K@60Hz; Frame rates: 23.98/24/25/29.97/30/47.95/48/50/56/59.94/60 |
Output & Connectivity
| Ethernet Control | 1x RJ45 Gigabit Ethernet |
| Monitoring | 1x HDMI (CONTROL UI) |
| Audio Output | 1x MIC IN (3.5mm), 1x Line OUT (3.5mm) |
| USB Ports | 2x USB 3.0 (front), 4x USB 2.0 (rear) |
Hardware
| Processor | Intel® Core™ i3-1215U |
| RAM | 16 GB DDR4 |
| Storage | 256 GB SSD |
| Operating System | Windows 10 Enterprise LTSC |
| Video Decoding | Hardware decoding: H.264, H.265, MPEG-4/2, WMV |
| Playback Capability | 4 layers + 1 audio |
Physical Specifications
| Power Input | 100-240V~, 60/50Hz, Max 80W |
| Dimensions | 482.6 mm × 407.5 mm × 50.1 mm (19.0" × 16.0" × 2.0") |
| Net weight | 5.2 kg (11.5 lbs) |
| Operating Temperature | 0°C to 45°C |
| Packing box | 565 mm × 510 mm × 175 mm (22.2" × 20.1" × 6.9") |
Software
| Compatible Software | Kompass FX1, VICP |
🏅 Certifications
🌡️ Environmental Specifications
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 0% RH to 80% RH, non-condensing |
| Storage Temperature | -10°C to +60°C |
| Storage Humidity | 0% RH to 95% RH, non-condensing |
📁 Supported Media Formats
| Video Formats | mp4, avi, mkv, flv, mov, wmv, mpeg, mpg, m4v |
| Image Formats | jpg, jpeg, bmp, png, gif, ico |
| Audio Formats | mp3, aac, flac, amr, ape, wav, wma |
| Recommended Codecs | H.264 (AVC) for resolutions ≤4K |
📦 Packing Information
| Packing Box Dimensions | 565 mm × 510 mm × 175 mm |
| Included Accessories |
|
Why Choose the ET1S-500G?
✓ Ultra-High Resolution
Hardware-accelerated 4K/8K/16K video playback and processing
✓ Professional Software
Includes Kompass FX software with intuitive control interface
✓ Scalable Performance
Add graphics cards and sync multiple servers for massive displays
✓ Maximum Reliability
Backed by 3-year NovaStar warranty plus Olympian LED support
