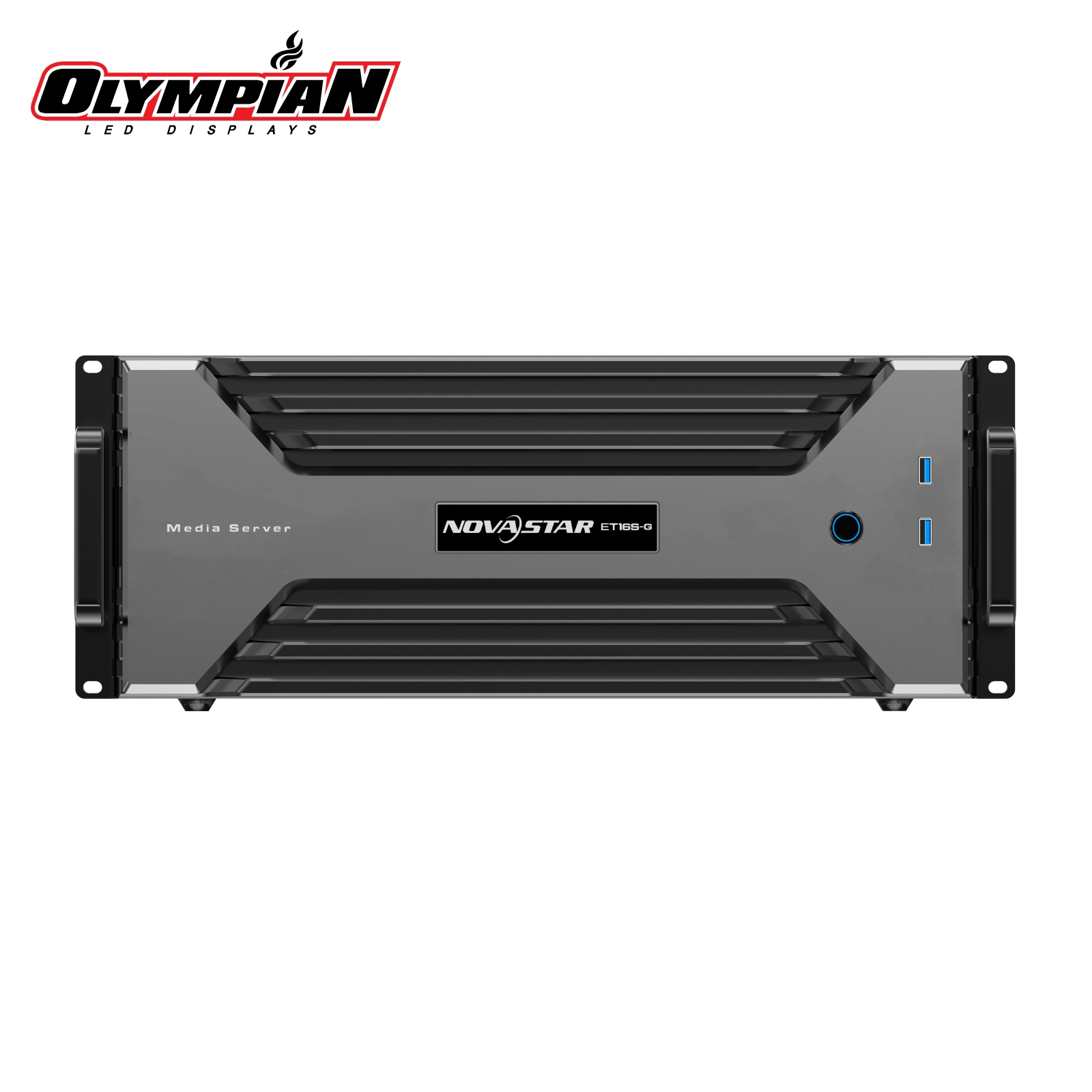

NovaStar ET16S-G (2A4)
The ET16S-G is a media server from NovaStar, boasting a 16K ultra-high resolution, pixel-to-pixel screen loading, and multiple high-performance graphics cards. Equipped with a powerful workstation motherboard, Intel Xeon processor, and ECC DDR4 memory, the ET16S-G enables flawless frame-synchronized output of four graphics cards. A single media server can replace four traditional media servers with single graphics card configurations, while also having the ability to link multiple servers for frame-synchronized mosaic and backup, perfect for meeting the requirements of ultra-high resolution displays exceeding 16K. Incorporating the latest version of Kompass FX3 multimedia playback software, the ET16S-G showcases its ability to hardware decode up to four channels of 8K60fps high-definition video content simultaneously, giving full play to the decoding and rendering capabilities of all available GPUs. Furthermore, it offers a range of functionalities, including multi-channel audio and video playback and processing, visual media management and program arrangement, as well as output partitioning and reorganization, enabling seamless control and creative display in mosaic configurations using multiple graphics cards. With all these advanced features, the ET16S-G is well-suited for various fixed installation scenarios requiring exceptional resolution and powerful playback control, such as large-scale outdoor advertising displays, naked-eye 3D, immersive experiences, data centers, and exhibition showcases.
Configuration Comparison
| Model | Configuration | Decoding Capacity | Price |
|---|---|---|---|
| ET16S-G (2A4) | ET16S-G (2A4) | 2 layers of 8K@60 or 8 layers of 4K@60 | $17,013 |
| ET16S-G (3A4) | ET16S-G (3A4) | 3 layers of 8K@60 or 12 layers of 4K@60 | $25,156 |
Key Highlights
🔗 Frame Synchronization Technology
The ET16S-G includes a Sync Card (Sync Card II) that acts as a master timing source to ensure all graphics cards output frames at exactly the same moment, eliminating visible tearing or seams on large LED walls. The Sync Card's 2x RJ45 ports enable daisy-chaining multiple ET16S-G servers together for massive 16K+ installations, where one server becomes the master and others synchronize to it. The BNC port accepts external timing signals from broadcast equipment or cameras for genlock capability. This technology is essential for seamless video walls spanning multiple servers, live events, concerts, and broadcast applications where perfect frame synchronization across dozens of outputs is critical.
Technical Specifications
Video Processing
| Layers | 12 layers |
| Maximum Width | 16384 pixels |
| Maximum Height | 8192 pixels |
Input Connectors
| USB | 2x USB (front panel), 2x USB (rear panel), 1x USB (rear panel, Type-A), 1x USB (rear panel, Type-C), 4x USB (rear panel, Type-A) |
Input Resolution Capabilities
| Input Resolutions | Up to 5120×2880@60Hz per DP 1.4 output (per graphics card); Mosaic: up to 16384 pixels width/height per card |
Output & Connectivity

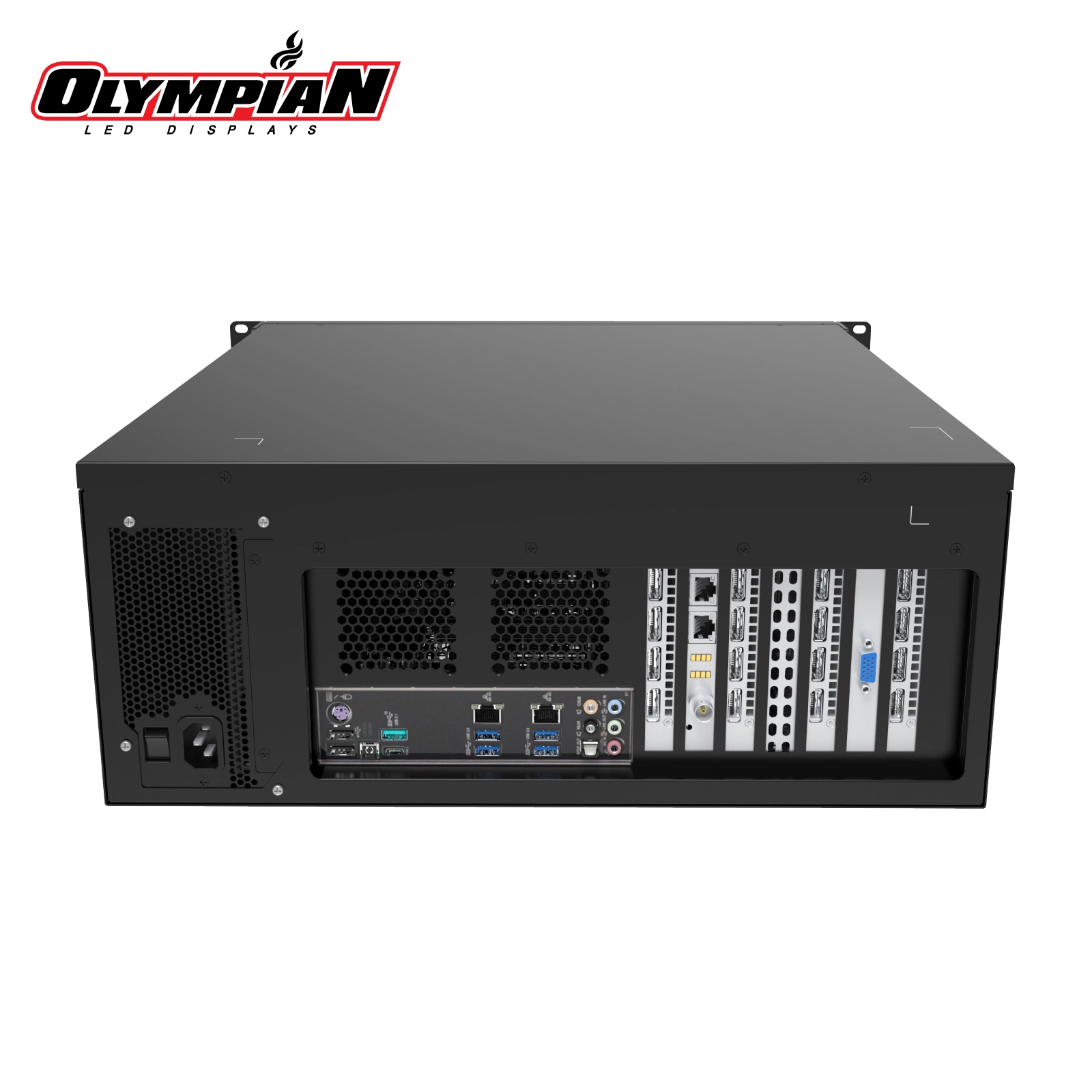

| Ethernet Control | 2x RJ45 Ethernet + Sync card (2x RJ45 + 1x BNC) |
| Monitoring | 3x Mini DP (max 4096×2160@60Hz each, CONTROL UI) |
| Audio Output | 1x MIC IN (3.5mm), 1x Line IN (3.5mm), 3x Line OUT (3.5mm), 1x S/PDIF optical |
| USB Ports | 2x USB 3.0 (front), 2x USB 2.0 (rear), 1x USB 3.1 Gen2 Type-A (rear), 1x USB 3.1 Gen2 Type-C (rear), 4x USB 3.1 Gen1 Type-A (rear) |
Hardware
| Processor | Intel® Xeon® Gold 6226R |
| RAM | 64 GB ECC DDR4 (expandable to 128 GB for dual CPU variants) |
| Storage | 1 TB SSD (Dual CPU variant: 1 TB + 960 GB) |
| Operating System | Windows 10 Enterprise LTSC |
| Video Decoding | Hardware decode up to 4 channels of 8K×4K@60fps SDR simultaneously (with 4 graphics cards) |
| Playback Capability | 12 mixing layers + 1 audio |
Physical Specifications
| Power Input | 100-240V~, 8A 50/60Hz, Max 1100W |
| Dimensions | 482.6 mm × 183.5 mm × 569.8 mm (19.0" × 7.2" × 22.4") |
| Net weight | 17.9 kg (39.5 lbs) |
| Operating Temperature | 0°C to 40°C |
| Packing box | 735 mm × 660 mm × 300 mm (28.9" × 26.0" × 11.8") |
Software
| Compatible Software | Kompass FX3, VICP |
🏅 Certifications
🌡️ Environmental Specifications
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 0% RH to 80% RH, non-condensing |
| Storage Temperature | -10°C to +60°C |
| Storage Humidity | 0% RH to 95% RH, non-condensing |
📁 Supported Media Formats
| Video Formats | mp4, avi, mkv, flv, mov, wmv, mpeg, mpg, m4v |
| Image Formats | jpg, jpeg, bmp, png, gif, ico |
| Audio Formats | mp3, aac, flac, amr, ape, wav, wma |
| Recommended Codecs | H.265 (HEVC) or VP9 for 4K-8K (width or height ≤8192 pixels); H.264 (AVC) for ≤4K; Videos >8K should be split into multiple files |
📦 Packing Information
| Packing Box Dimensions | 735 mm × 660 mm × 300 mm |
| Included Accessories |
|
Why Choose the ET16S-G (2A4)?
✓ Ultra-High Resolution
Hardware-accelerated 4K/8K/16K video playback and processing
✓ Professional Software
Includes Kompass FX software with intuitive control interface
✓ Scalable Performance
Add graphics cards and sync multiple servers for massive displays
✓ Maximum Reliability
Backed by 3-year NovaStar warranty plus Olympian LED support
